Spring Boot Architecture

Everything you need to know about the architecture of a Java Spring Boot application​

media_licdn_com_image

Maven/Gradle:

We would recommend to use Maven for this project and the Java Spring Boot Template application we will provide will be using Maven aswell.

Lombok:​

We recommend you to use Lombok in your project. This will reduce the amount of boilerplate code you have to write by a ton.

JDBC and JPA:​

Use JPA and JDBC

If you are already familiar with Java Spring Boot:

You may only need to have a look at the expected folder structure of the project to understand this page. This folder structure looks as follows:​

[my-app]/
├─ src/
│  ├─ main/
│  │  ├─ java/
│  │  │  ├─ com/
│  │  │  │  ├─ agilesoftwareengineering/
│  │  │  │  │  ├─ [your-project-name]/
│  │  │  │  │  │  ├─ configs/
│  │  │  │  │  │  ├─ controllers/
│  │  │  │  │  │  ├─ entities/
│  │  │  │  │  │  ├─ dtos/
│  │  │  │  │  │  ├─ repositories/
│  │  │  │  │  │  ├─ services/
│  │  │  │  │  │  ├─ Application.class
│  │  ├─ resources/
│  │  │  ├─ application.yaml
│  ├─ test/
│  │  ├─ java/
│  │  │  ├─ com/
│  │  │  │  ├─ agilesoftwareengineering/
│  │  │  │  │  ├─ [your-project-name]/
├─ .gitignore
├─ pom.xml
├─ README.md

Understanding Java Spring Boot Architecture​

Java Spring Boot promotes a structured approach to building applications, drawing inspiration from the Model-View-Controller (MVC) pattern. It encourages the separation of concerns by organizing code into distinct layers, primarily:

1. Controllers​

Controllers are the entry points for external requests into your application. They are responsible for handling incoming HTTP requests, mapping them to appropriate methods, and returning responses. They act as the "front-desk" of your application.
Example: A UserController might listen for GET /users requests to retrieve a list of users or POST /users to create a new user.

2. Services​

Services encapsulate the business logic of your application. They act as an intermediary between controllers and the data layer. Services perform complex operations, coordinate multiple data operations, and enforce business rules. They keep your controllers lean and focused on request handling.
Example: A UserService would contain methods like List<User> getAllUsers(), User createUser(User user), or void updateUserDetails(Long userId, User updatedUser). These methods might involve fetching data, applying transformations, or interacting with other services.

3. Models (Entities, Repositories, DTOs (Data Transfer Objects))​

The "Models" layer in Spring Boot is primarily managed through Entities and Repositories, forming the backbone of your data persistence.

  • Entities: These are plain old Java objects (POJOs) that represent the structure of your data and are typically mapped to tables in a database. They define the attributes and relationships of your data.
    Example: A User entity class would define properties like id, username, and email, often annotated with JPA (Java Persistence API) annotations to map to database columns.
  • Repositories: Repositories provide a standardized way to interact with your data source (e.g., a database). Spring Data JPA simplifies this by automatically generating common CRUD (Create, Read, Update, Delete) operations based on method signatures. You define interfaces, and Spring provides the implementation.
    Example: A UserRepository interface would extend JpaRepository<User, Long>. You could then define custom query methods like findByUsername(String username), which Spring automatically converts into SQL queries.

4. Config / Beans​

This layer is dedicated to defining application-wide configurations and shared components, often referred to as "Beans." Spring's Inversion of Control (IoC) container manages the lifecycle and dependencies of these beans.
Examples:

  • Configuration Classes: Classes annotated with @Configuration to define application settings, third-party library configurations, or custom bean definitions.
  • Utility Classes: Common utilities, HTTP clients (like WebClient), or message brokers that need to be instantiated once and reused across different parts of the application.

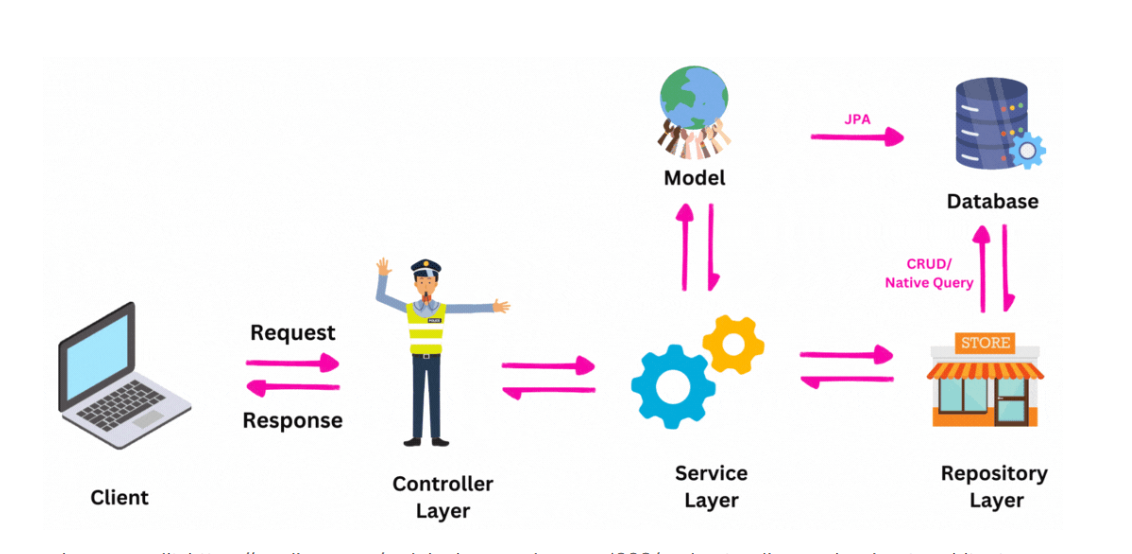

Combining the Layers: The Request Flow​

The interaction between these layers follows a clear and logical flow:

  1. Request Arrival: An incoming HTTP request (e.g., GET /users) first hits the Controller layer.
  2. Controller Delegation: The appropriate method in the Controller receives the request and, instead of handling the business logic directly, delegates the responsibility to the Service layer (e.g., userService.getAllUsers()).
  3. Service Business Logic: The Service method executes the necessary business logic. This often involves:
    • Fetching data from the Repository layer (e.g., userRepository.findAll()).
    • Applying transformations, validations, or complex calculations to the data.
    • Potentially interacting with other services or external systems.
  4. Repository Data Access: The Repository interacts with the database to retrieve or persist data, abstracting away the low-level database operations.
  5. Response Generation: Once the Service has completed its task, it returns the processed data back to the * *Controller**. The Controller then formats this data into an appropriate HTTP response (e.g., JSON) and sends it back to the client.

Small Spring Boot Example: User Management​

Let's illustrate these concepts with a basic Spring Boot application for managing users.
1. Model (Entity & Repository)
First, define the User entity and its UserRepository.

// src/main/java/com/example/demo/model/User.java
package com.example.demo.model;

import jakarta.persistence.Entity;
import jakarta.persistence.GeneratedValue;
import jakarta.persistence.GenerationType;
import jakarta.persistence.Id;

@Entity
public class User {
    @Id
    @GeneratedValue(strategy = GenerationType.IDENTITY)
    private Long id;
    private String username;
    private String email;

    // Constructors
    public User() {}

    public User(String username, String email) {
        this.username = username;
        this.email = email;
    }

    // Getters and Setters
    public Long getId() {
        return id;
    }

    public void setId(Long id) {
        this.id = id;
    }

    public String getUsername() {
        return username;
    }

    public void setUsername(String username) {
        this.username = username;
    }

    public String getEmail() {
        return email;
    }

    public void setEmail(String email) {
        this.email = email;
    }

    @Override
    public String toString() {
        return "User{" +
               "id=" + id +
               ", username='" + username + '\'' +
               ", email='" + email + '\'' +
               '}';
    }
}

// src/main/java/com/example/demo/repository/UserRepository.java
package com.example.demo.repository;

import com.example.demo.model.User;
import org.springframework.data.jpa.repository.JpaRepository;
import org.springframework.stereotype.Repository;

import java.util.Optional;

@Repository // Indicates that this is a repository component
public interface UserRepository extends JpaRepository<User, Long> {
    // Spring Data JPA automatically provides CRUD methods (save, findById, findAll, deleteById, etc.)
    // You can also define custom query methods here:
    Optional<User> findByUsername(String username);
}

2. Service
Now, create a UserService to handle the business logic.

// src/main/java/com/example/demo/service/UserService.java
package com.example.demo.service;

import com.example.demo.model.User;
import com.example.demo.repository.UserRepository;
import org.springframework.stereotype.Service;

import java.util.List;
import java.util.Optional;

@Service // Indicates that this is a service component
public class UserService {

    private final UserRepository userRepository;

    // Spring automatically injects UserRepository due to @Service and constructor
    public UserService(UserRepository userRepository) {
        this.userRepository = userRepository;
    }

    public List<User> getAllUsers() {
        return userRepository.findAll();
    }

    public Optional<User> getUserById(Long id) {
        return userRepository.findById(id);
    }

    public User createUser(User user) {
        // You could add more business logic here, e.g., validation
        return userRepository.save(user);
    }

    public User updateUser(Long id, User updatedUser) {
        return userRepository.findById(id).map(user -> {
            user.setUsername(updatedUser.getUsername());
            user.setEmail(updatedUser.getEmail());
            return userRepository.save(user);
        }).orElseThrow(() -> new RuntimeException("User not found with id " + id)); // Example error handling
    }

    public void deleteUser(Long id) {
        userRepository.deleteById(id);
    }

    public Optional<User> findUserByUsername(String username) {
        return userRepository.findByUsername(username);
    }
}

3. Controller
Finally, create a UserController to expose REST endpoints.

// src/main/java/com/example/demo/controller/UserController.java
package com.example.demo.controller;

import com.example.demo.model.User;
import com.example.demo.service.UserService;
import org.springframework.http.HttpStatus;
import org.springframework.http.ResponseEntity;
import org.springframework.web.bind.annotation.*;

import java.util.List;

@RestController // Indicates that this is a REST controller
@RequestMapping("/api/users") // Base path for all endpoints in this controller
public class UserController {

    private final UserService userService;

    // Spring automatically injects UserService
    public UserController(UserService userService) {
        this.userService = userService;
    }

    @GetMapping
    public List<User> getAllUsers() {
        return userService.getAllUsers();
    }

    @GetMapping("/{id}")
    public ResponseEntity<User> getUserById(@PathVariable Long id) {
        return userService.getUserById(id)
                .map(ResponseEntity::ok) // If user is found, return 200 OK with user
                .orElse(ResponseEntity.notFound().build()); // If not found, return 404 Not Found
    }

    @PostMapping
    @ResponseStatus(HttpStatus.CREATED) // Return 201 Created status
    public User createUser(@RequestBody User user) {
        return userService.createUser(user);
    }

    @PutMapping("/{id}")
    public ResponseEntity<User> updateUser(@PathVariable Long id, @RequestBody User userDetails) {
        try {
            User updatedUser = userService.updateUser(id, userDetails);
            return ResponseEntity.ok(updatedUser);
        } catch (RuntimeException e) {
            return ResponseEntity.notFound().build(); // Or handle specifically with @ControllerAdvice
        }
    }

    @DeleteMapping("/{id}")
    @ResponseStatus(HttpStatus.NO_CONTENT) // Return 204 No Content status
    public void deleteUser(@PathVariable Long id) {
        userService.deleteUser(id);
    }

    @GetMapping("/username/{username}")
    public ResponseEntity<User> getUserByUsername(@PathVariable String username) {
        return userService.findUserByUsername(username)
                .map(ResponseEntity::ok)
                .orElse(ResponseEntity.notFound().build());
    }
}

4. Configuration (Example for a simple web client)
While not strictly part of the core MVC flow, here's an example of a configuration class for a WebClient if you needed to make external HTTP calls.

// src/main/java/com/example/demo/config/WebClientConfig.java
package com.example.demo.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.reactive.function.client.WebClient;

@Configuration // Indicates that this class provides bean definitions
public class WebClientConfig {

    @Bean // Marks the returned object as a Spring bean
    public WebClient webClient(WebClient.Builder builder) {
        return builder.baseUrl("https://api.example.com") // Example base URL for an external API
                      .build();
    }
}

This refined documentation and example should provide a solid foundation for understanding the basic usage and separation of logic in Spring Boot applications! Remember to include necessary dependencies in your pom.xml (e.g., spring-boot-starter-web, spring-boot-starter-data-jpa, database driver like h2 for in-memory testing).
